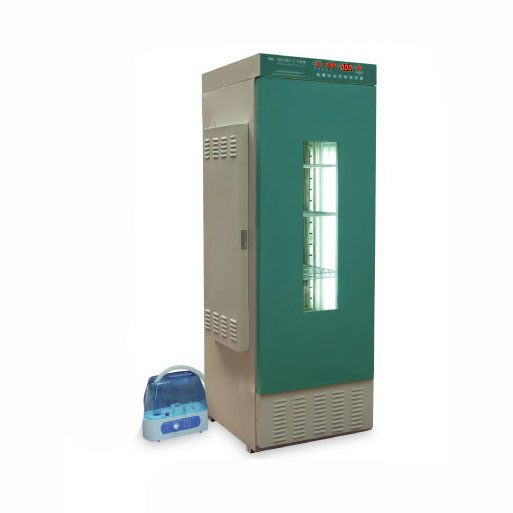

Its a type of high precision homeothermal equiment with illurmination function. applicable in homeothermal exeriments such as piant germination. raise seedling. microbe culture. water examination BOD test and etc. which is the ideal experiment equipment for production. R&D and education departments including biological heredity engineering. medicine. agriculture and forestry. environmental science. animal husbandry and aquaticproducts. etc.
结构特点。
*本机外壳采用冷轧钢板制成,表面喷塑处理。工作室采用镜面不锈钢制作，耐污抗腐蚀。工作
室内搁板高低可任意调节，风道的循环系统设计合理，确保风力分布均匀。
*集温度、湿度、光照度控制、显示于一体的培养设备、配有专用超声波加湿器，具有加湿快、湿
度波动小、使用寿命长等优点。
*控温器是采用先进的微电脑智能温度控制，具有PID自整定、双LED数字显示和菜单式多个控
制参数设置功能，带有独立限温报警系统、超过限止温度时会自动报警并断电保护。确保实验安全运
行,不发生意外。并带有0-9999分钟时间 设定功能。控温更精确、操作方便、温度示值显示准确直
观。
Construction features：
*Its shell is made up with excellent steel plates. with clean and beautiful out-look after being plastics sprayed treatment. Interal. walls are made up with mirror stainless steel plates. whosedistances can be freely adjusted. And its windtunnelc irculation system is designed reasonabie to ensure evenly distributed wind force.
*The cultivation equipment integrated temperature. humidity and illuminance controls. and set up with ultrasonic humidifier. has the features of rapid humidifying rate. little humidity fluctation. and long service life.
*The temperature control has 2 models.e.g.digital display and cursor model. which can be freely selected Digital display intellectuai temperature controller has functio-ns of PID automatic setting and dual LED digital display. multiple controlling param-eter setting and control functions for alarmjng and automatically switching off to make the temperature control more accurate.
主要技术指标: Primary technical indexes：
* 公称尺寸 ： Nominal capacity ： 300 L
* 控 温 范 围： Temperature contral scope：
有光照 ： With illumination 10 ℃-50℃
无光照 ： Without illumination 5 ℃-50℃
* 温 度 波 动： Temperature flctuation： ±1 ℃
* 温度均匀度： Temperature contral ： ± 1℃
* 光照度： ≥6000LX 三段程控
LLLuminance：≥6000LX Three -section programmed control
* 湿度控制范围： Humidity fluctuation： 50%—90%RH
* 湿度波动： Humidity fluctuation ： ± 10 %RH
* 额定功率（KW）：Rated power (KW) ： 0.7
* 电 压 / 电 源： Voltage / powe ： 220V±10% / 50HZ+2%
* 工作室尺寸（cm）：Size of work room ( cm ) ： 49×47.5×128
* 外形尺寸（cm）：Outine Size ( cm ) ： 71×72.5×168
* 包装尺寸（cm）： Package Size ( cm ) ： 84×84.5×184
* 净重/毛重（Kg）： Net /gross weight ( kg ) ： 134/ 180
选 购 件：
1，RS485接口和通讯软件——￥1000元
2，嵌入式打印机（微型）—— ￥1800元
Optional :
1，RS485 interface and communication software --- ¥ 1000 元
